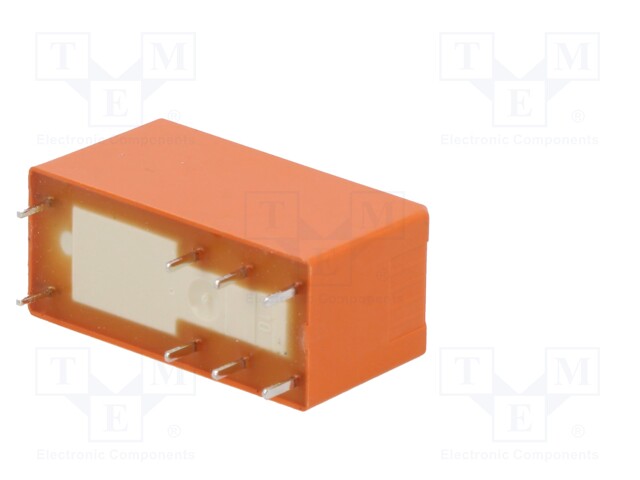

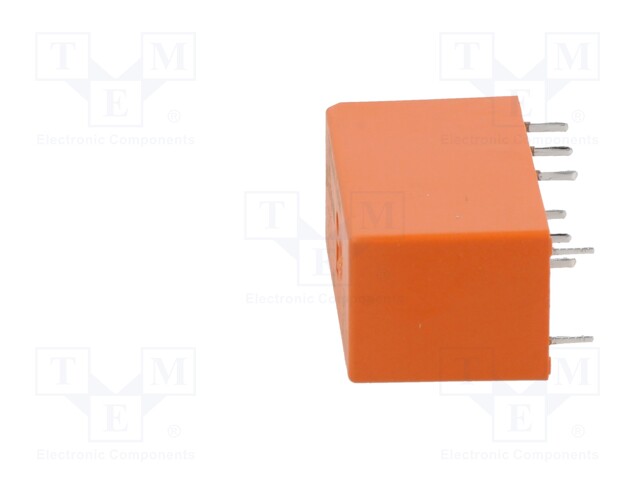

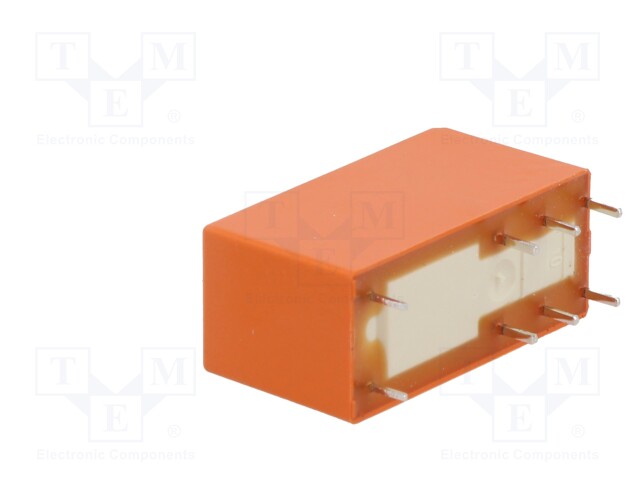

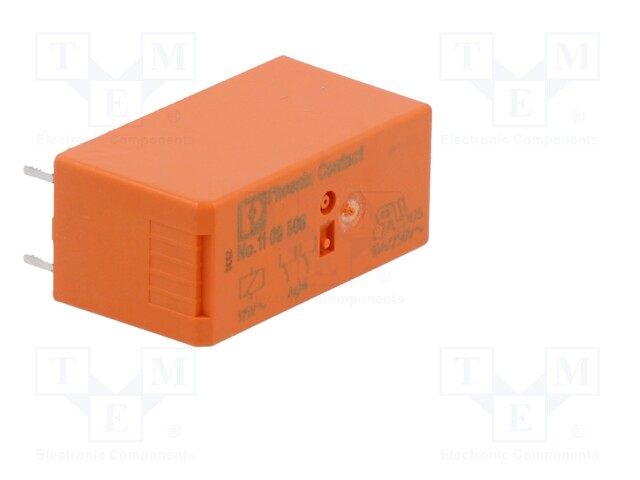

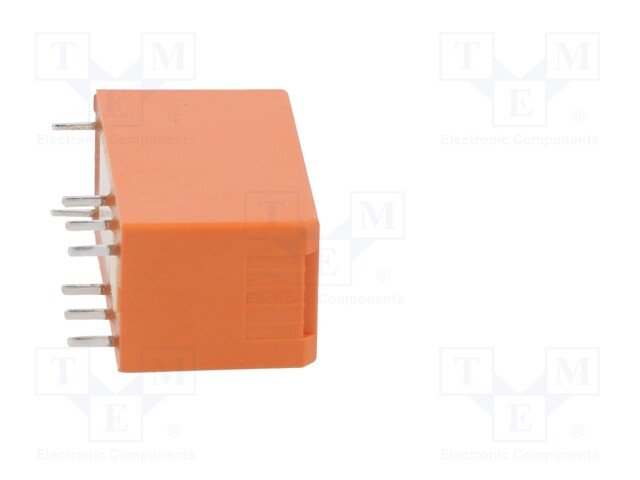

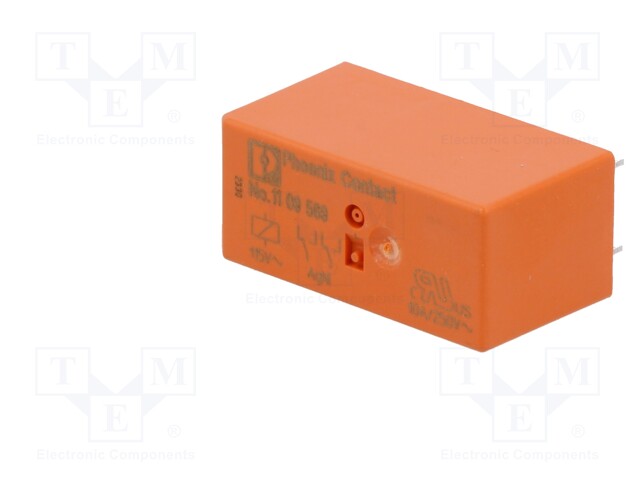

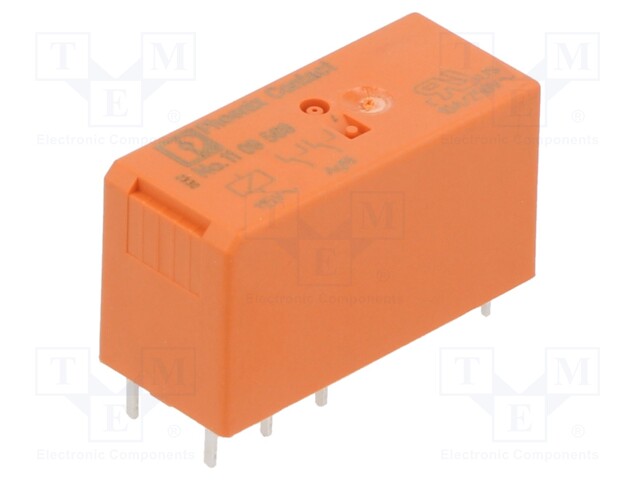

Relay: miniature

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 1109569
    Manufacturer: PHOENIX CONTACT
    Manufacturer code: 1109569
    • Mounting
    • Operating temperature
    • Leads
    • Contact material
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Operate time

    5.81 € 5.81 € (wo VAT) 5.8100000000000005 EUR

    5.81 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: miniature

    Mounting PCB
    Operating temperature -40...70°C
    Leads for soldering
    Contact material AgNi
    Body dimensions 29x12.7x15.7mm
    Mechanical durability 5000000cycles
    Switched voltage max. 250V AC, max. 250V DC
    Coil resistance 8.1kΩ
    Contacts configuration DPDT
    DC contacts rating @R 2A / 24V DC
    AC contacts rating @R 1.5A / 230V AC
    Contact current max. 8A
    Relay variant miniature
    Operate time 12ms
